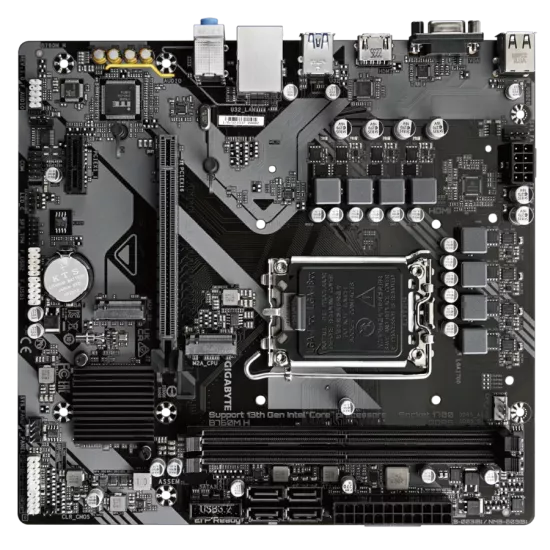

Gigabyte B760M H DDR5 Motherboard For Intel 12th | 13th | 14th Gen

Name: Gigabyte B760M H DDR5 Motherboard For Intel 12th | 13th | 14th Gen - naveencomputers.com
Price: 9305.00 INR
Availability: InStock

₹9,305.00

5 in stock

Our courier will deliver to the specified address

2-3 Days

From Rs.90*

TracKon courier will deliver to the specified address

2-3 Days

From Rs.120*

Specification	Details
CPU Support	LGA1700 socket: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU.
Chipset	Intel® B760 Express Chipset
Memory	– 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) – Supports DDR5 8000(O.C.) to 4000 MT/s – Dual channel architecture – Supports ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode) – Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 – Supports XMP memory modules
Onboard Graphics	Integrated Intel® HD Graphics: – 1 x D-Sub (max 1920×1200@60Hz) – 1 x HDMI (max 4096×2160@60Hz) * HDMI 2.1, HDCP 2.3 support ** Native HDMI 2.1 TMDS ports (Graphics spec may vary depending on CPU)
Audio	– Realtek® Audio CODEC – High Definition Audio, 2/4/5.1/7.1-channel * Audio jack functions customizable via software – S/PDIF Out supported
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots	CPU: – 1 x PCIe x16 (PCIe 4.0, runs at x16) * Supports only GPU or NVMe SSD Chipset: – 1 x PCIe x1 (PCIe 3.0, runs at x1)
Storage Interface	CPU: – 1 x M.2 (2280, PCIe 4.0 x4/x2) – M2A_CPU Chipset: – 1 x M.2 (2280, PCIe 4.0 x4/x2) – M2P_SB – 4 x SATA 6Gb/s – RAID 0, 1, 5, 10 supported for SATA
