| Category | Details |
|---|---|
| CPU | Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz), 1 MB Cache * Do not disassemble the onboard SoC and heatsinks to avoid damage. |
| Memory | 2 x DDR3 DIMM sockets, up to 8 GB Dual channel architecture Supports DDR3/-L 1333 MHz non-ECC modules * Windows 32-bit may display less than 4 GB installed memory. |
| Onboard Graphics | D-Sub: Max 2560×1600 HDMI: Max 1920×1080 |
| Audio | Realtek® ALC887 codec, HD Audio 2/4/5.1/7.1-channel support (7.1 requires HD front panel module) Supports S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI Express x16 slot (runs at x1) 1 x PCI Express x1 slot 1 x PCI slot |
| Storage Interface | 2 x SATA 3Gb/s connectors |
| USB | 1 x USB 3.0/2.0 (rear) 8 x USB 2.0/1.1 ports (4 rear, 4 via headers) |
| Internal I/O Connectors | – 24-pin ATX main power connector – 4-pin ATX 12V power connector – 2 x SATA connectors – CPU fan header, system fan header – Front panel & audio headers – S/PDIF Out header – 2 x USB 2.0 headers – 2 x serial port headers – TPM header – Clear CMOS jumper |

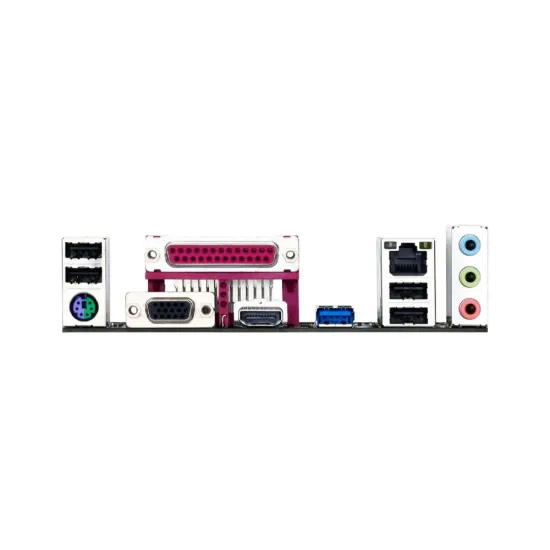

| Back Panel Connectors | – PS/2 keyboard/mouse port – D-Sub & HDMI ports – Parallel port – 1 x USB 3.0/2.0 – 4 x USB 2.0 – RJ-45 LAN port – 3 x audio jacks (Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | – Voltage, temperature, fan speed detection – CPU/System fan speed control * Fan control depends on cooler support |
| BIOS | 64 Mbit AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | – Xpress Install, @BIOS – APP Center support (*applications vary by model) – ON/OFF Charge |
| Bundle Software | Norton® Internet Security (OEM), Intel® Smart Connect Technology |
| Operating System | Windows 10 / 8.1 / 8 / 7 |
| Form Factor | Micro ATX, 22.6 cm x 18.0 cm |
Fast delivery within 72 Hours

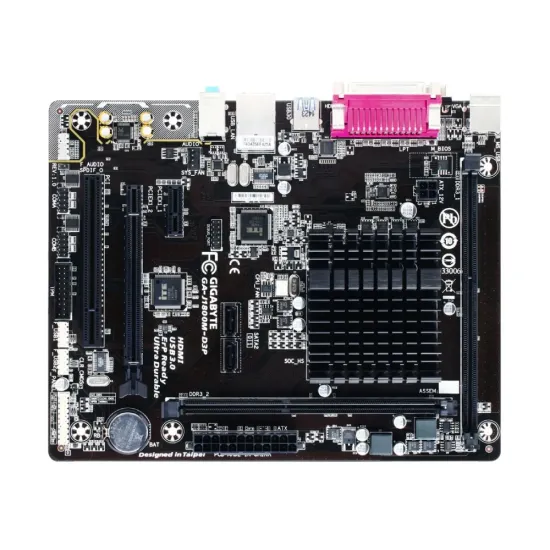

Gigabyte J1800M-D3P DDR3 Intel Dual Core CPU Motherboard
₹2,855.00
5 in stock
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From Rs.90*
-
Trackon Courier delivery
TracKon courier will deliver to the specified address
2-3 Days
From Rs.120*
-
Warranty 1 year
-
Free 30-Day returns
Description
Customer Reviews
You may also like
Aarvex Internal SSD 128GB SATA
In stock
Original price was: ₹950.00.₹850.00Current price is: ₹850.00.
Reviews
Clear filtersThere are no reviews yet.
